원래 장소:
중국
브랜드 이름:
Delicacy
인증:
CE
모델 번호:
DP-84

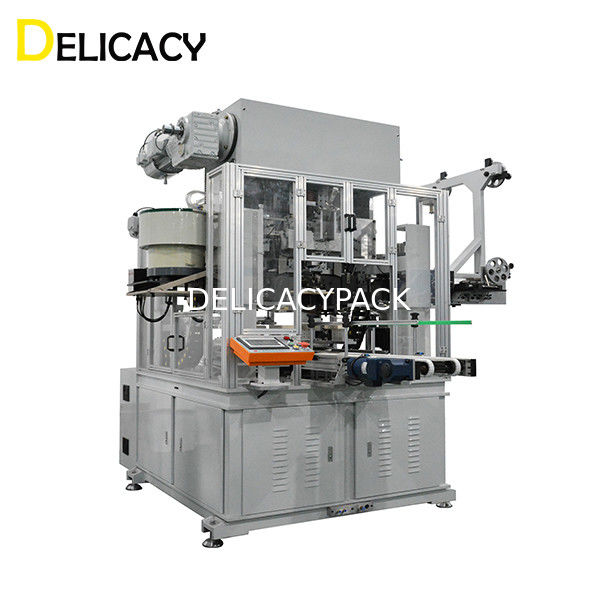

전자동 금속 주석 버킷 배럴은 페일관 만들고 있는 생산 라인 와이어 핸들 기계를 끕니다
완전 자동 와이어 핸들 기계
제품 소개
This economic wire handle machine is special made for customers, using cam transmission, cam conveying,which can reach 30cpm up.The forming of the wire handle is flat U shape hook & fold inside to make the wire handle not easy to come out and not pierce through pail body.Locating by sensor & mechanical combined, it makes the hook insert more precisely. It uses V-shape bearing to correct the wire from wire feeding rollers to forming, making the changeover of wire more convenient. This machine can be perfectly connected with the automatic production line for pails, to make it more efficient & safe.
주요 기술적인 매개 변수
출력 :30CPM
생산 범위 :Φ220mm-Φ300mm
적용 가능한 높이 :280-500mm
비즈 세공과 귀 사이의 거리 :≥20mm
탑 엔드와 귀 사이의 거리 :35+(L-180)~65+(L-180)MM
와이어 직경 :3.5-4.0mm
전체 전력 :15KW
적용 가능한 기압 :≥0.6Mpa
연결 높이 :1000±20mm
중량 :App.4T
차원(lxwxh) :2720x2940x2720mm
